22 INCH ALLOY FRAME 7 SPEED MINI MOUNTAIN BIKE MTB BICYCLE
22 INCH ALLOY FRAME 7 SPEED MINI MOUNTAIN BIKE MTB BICYCLE
Price
US $85-96
Model
OC-M22175A
Min. Order
100 set

Item specifics

frame
aluminum alloy 6061
fork
20 steel sus fork
derailleur
7 speed
brake
V-brake
certification
ISO9001
hub
steel YL hub
rim
double wall alloy rim 340G
package
85% SKD/CKD

Product review

Description

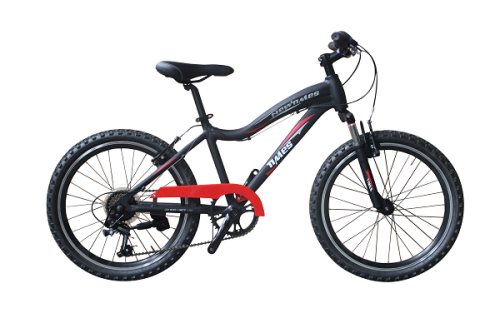

         Mini mountain bike



Specifications:
22" *355MM alloy 7S  fat head tube 41*34*120MM 22" sus fork 31.8,V-brake,stand tube:Φ28.6*Φ25.4*220L no thread

FRAME

SizesS, M, L, XL
Colorsred/black logo
Frame
Fork
ShockN/A



COMPONENTS

HandlebarOcean model, alloy swallow  580W  hold distance170MM 2.0T 25.4
StemOcean model,alloy 28.6*25.4mm EXT;60MM  H;41MM
SeatpostOcean sport, alloy 27.2*250L
SaddleOcean Connect,black/color
Pedals9/16″plastic/alloy with ball






3/32"*44 black*152L

DRIVETRAIN

ShiftersShimano TX50 index thumb shifter
Front DerailleurNIL
Rear DerailleurShimano TZ-50 7S
BrakesPromax alloy V-brake 60 rubber
Brake LeversPromax alloy lever
CassetteShimano TZ21  7S index,14-28T
ChainGM-Z51 3/32"*102L
Crankset
Bottom Bracke  sealed small pcs

WHEELS

RimsHengli alloy 22*1.95*14G*28H  F/V  H;30MM with CNC
HubsSteel ED hub F:14G*28H*100W*140L*3/8“ R:14G*28H*135W*180L*3/8” D;39MM R+4
Spokes45# 14G F;210*28H  R;210/208MM*28H
TiresKenda 22*1.95 BK




OTHER

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.
